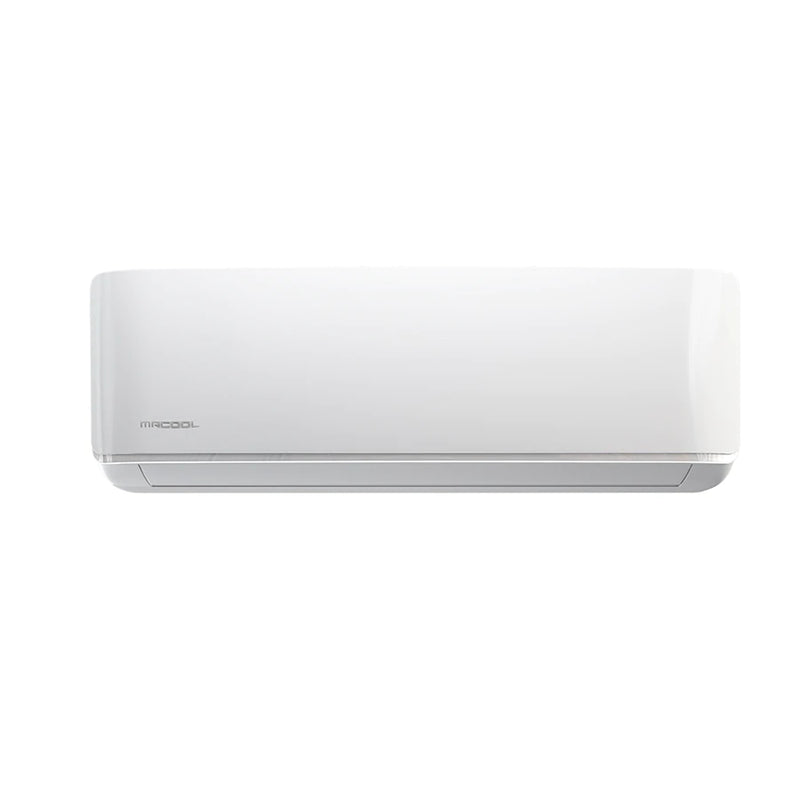

MRCOOL E Star DIY 4th Gen 36k BTU Ductless Mini-Split Heat Pump Complete System
MRCOOL E Star DIY 4th Gen 36k BTU Ductless Mini-Split Heat Pump Complete System
SKU:DIY-36-HP-WM-230C25
In stock
Couldn't load pickup availability
Share
OVERVIEW
The MRCOOL® 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series. This complete system has the heating and cooling performance to cover an area up to 1,500 sq. ft, while still being able to achieve an 18 SEER efficiency rating.

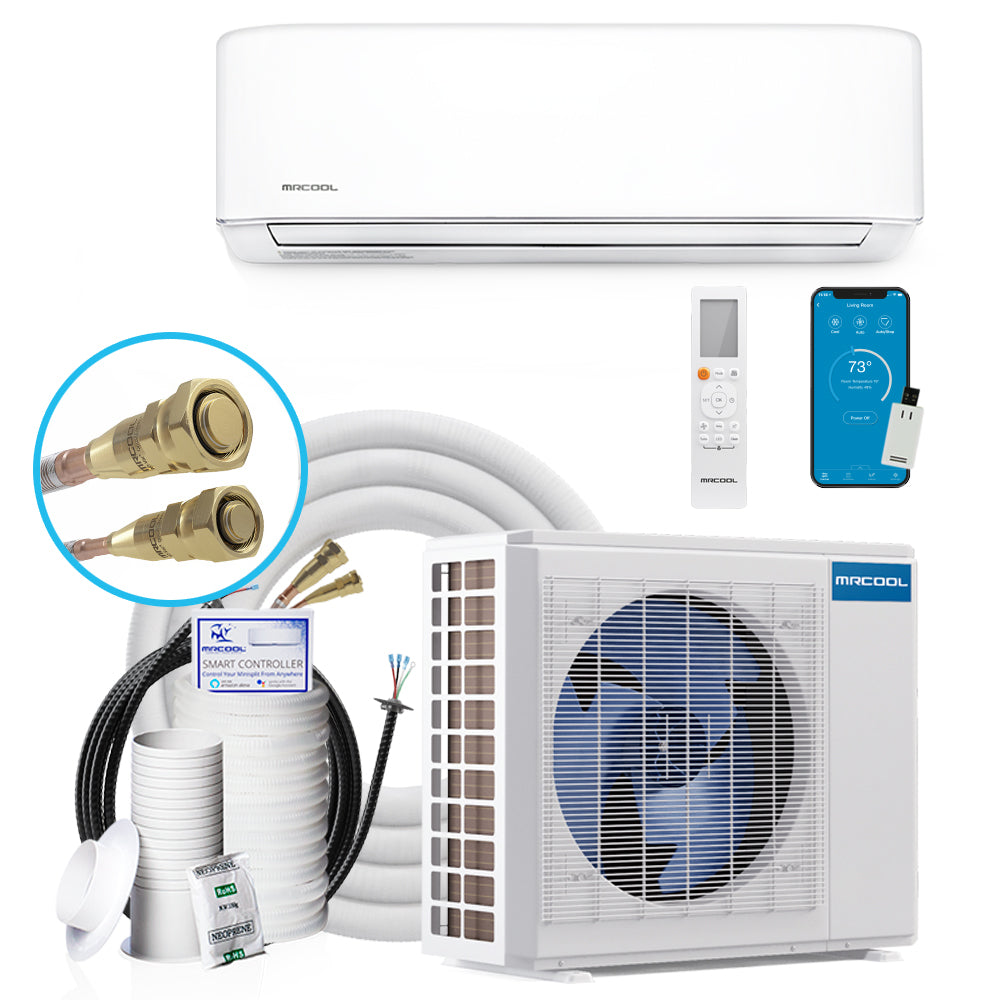

All of this performance is within a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MRCOOL Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches.
The benefits of this system are not limited to the performance and ease of installation. This system also has many operational functions and features that set it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This system features a Follow Me function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app.
MRCOOL offers a limited lifetime compressor warranty on this system.
Available sizes of MRCOOL DIY 4th Generation Ductless Mini-Split System
- 12,000 BTU - 550 Square Feet
- 18,000 BTU - 750 Square Feet
- 24,000 BTU - 1,100 Square Feet
- 36,000 BTU - 1,500 Square Feet
RESOURCES
VIDEO
PRODUCT SPECIFICATIONS
Corrosion Resistance | Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion |
Inverter | Variable-speed DC inverter compressor technology cuts operating costs |
Refrigerant | R-410A environmentally friendly refrigerant |
Warranty | Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty |
Line sizes | Line sizes 1/4”, 1/2” & 3/8”, 5/8” |
SEER | 18 |
SEER2 | 18.3 |
EER | 8.7 |
EER2 | 8.7 |
COP 47 | 2.81 |
HSPF | hspf4/hspf5 : 12/9 |
HSPF2 | hspf2-4/hspf2-5 : 8/6.4 |
CFM | 673.53/502.94/367.65 |
TONNAGE | 3 |
COOLING CAPACITY | 36000 BTU |
HEATING CAPACITY | 36000 BTU |
VOLTAGE | 208-230 V |
PHASE | 1 |
CYCLE | 60 Hz |
MAX FUSE BREAKER | 35 A |
MIN CIRCUIT AMPACITY | 28 A |
COLOR | White |
COLOR FAMILY | White |
RATED LOAD | 0.50 A |
MAX COVERAGE AREA | Up to 1500 sqft |
ZONE CAPACITY | 1 |
REFRIGERANT TYPE | R-410A |
REFRIGERANT VOLUME | 111.1 oz |
DECIBEL RATING | 52/45/34 |
DECIBEL RATING LOW | 34 dBA |
DECIBEL RATING HIGH | 52 dBA |
AIR FLOW DIRECTION | 4-W |
OSCILLATION | Yes |
INVERTER | Yes |
MIN AMBIENT COOL | 5F - 122F |
MIN AMBIENT HEAT | 5F - 75F |
LINE SET LENGTH | 25ft |
MAX LINESET LENGTH | 75 ft |
LIQUID LINE SIZE | 3/8 in |
SUCTION LINE SIZE | 5/8 in |
COMPRESSOR MOTOR TYPE | Rotary |
CONDENSER FAN MOTOR RPM | 950/250 |
BLOWER MOTOR RPM | 1200/950/750 |
AUXILIARY HEATER INCLUDED | No |
AUXILIARY HEATER AVAILABLE | No |
FAN ONLY OPTION | Yes |
QUIET MODE | Yes |
AUTO COOL | Yes |
WIFI COMPATIBILITY | Yes |
APP COMPATIBILITY | Yes |
WORKS WITH IOS | Yes |
WORKS WITH ANDROID | Yes |
REMOTE CONTROL INCLUDED | Yes |
UL LISTED | Yes |
ENERGY STAR CERTIFIED | No |
AHRI CERTIFIED | Yes |
REGISTERED WARRANTY | Limited Lifetime Compressor |
BASE WARRANTY | 5-year Parts/7-year Compressor |
BASE PARTS WARRANTY | 5-year Parts |
REGISTERED COMPRESSOR WARRANTY | Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY | 7-year Compressor |
HAS BATTERIES | Yes |
CONTAINS ELECTRONICS | Yes |
CONTAINS CHEMICALS | Yes |
CONTAINS AEROSOL | Yes |
CONTAINS COMPRESSED GAS | Yes |
PROPOSITION 65 WARNING | Yes |
RESTRICTED STATES | GU;PR;VI |
CONDENSER DEPTH | 16.14 in |
CONDENSER HEIGHT | 31.89 in |
CONDENSER WIDTH | 37.24 in |
CONDENSER WEIGHT | 147.27 lbs |
AIR HANDLER DEPTH | 11.10 in |
AIR HANDLER HEIGHT | 14.25 in |
AIR HANDLER WIDTH | 49.57 in |
AIR HANDLER WEIGHT | 47.84 lbs |
