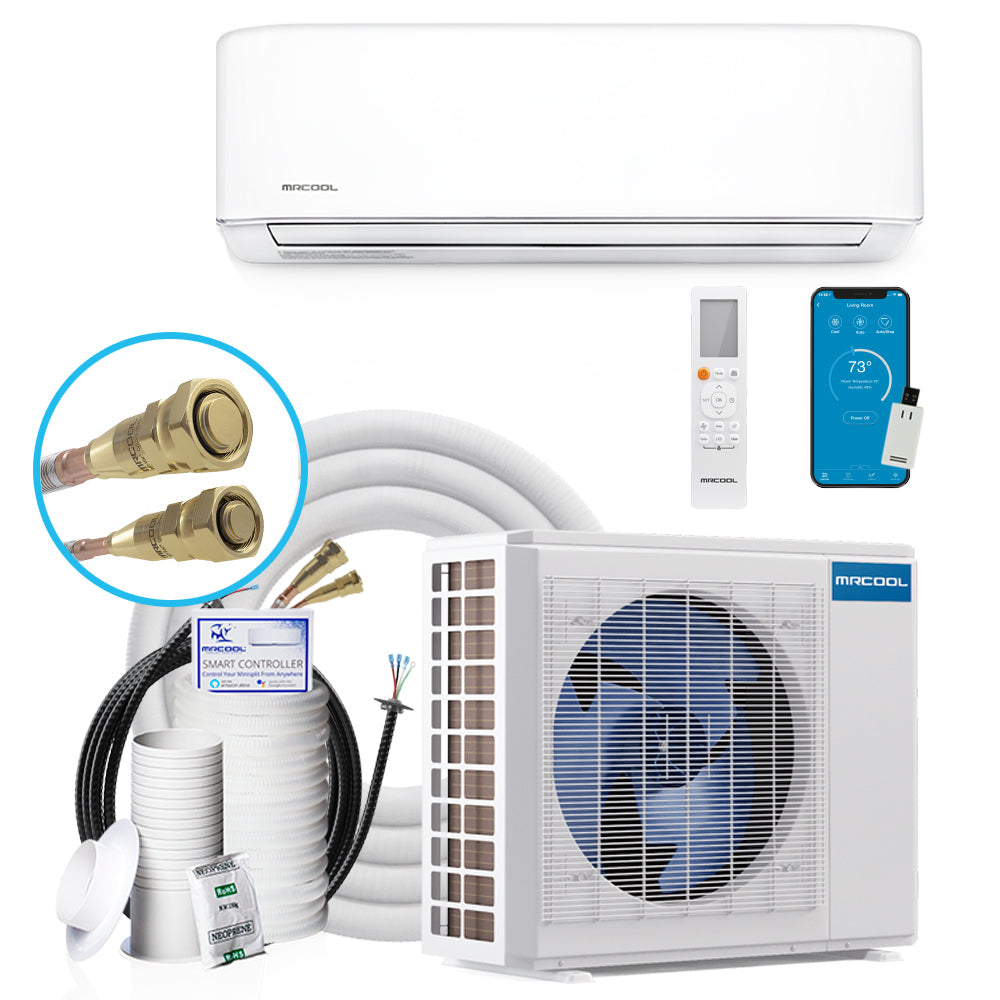

MRCOOL E Star DIY 4th Gen 18k BTU Ductless Mini-Split Heat Pump Complete System
MRCOOL E Star DIY 4th Gen 18k BTU Ductless Mini-Split Heat Pump Complete System
SKU:DIY-18-HP-WM-230C25
In stock
Couldn't load pickup availability
Share
OVERVIEW
The MRCOOL® 4th Generation DIY 18K BTU, 22 SEER Ductless Heat Pump system offers a complete solution to your home’s heating and cooling needs. This system can heat & cool an area up to 750 sq. ft and is capable of an Energy Star certified, 22 SEER efficiency rating.
However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest.
It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is.
Need to operate the system when you’re not at home? No problem. The MRCOOL system also has the capability of being operated with your smartphone with the use of the Smart HVAC app.
MRCOOL stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty
Available sizes of MRCOOL DIY 4th Generation Ductless Mini-Split System
- 12,000 BTU - 550 Square Feet
- 18,000 BTU - 750 Square Feet
- 24,000 BTU - 1,100 Square Feet
- 36,000 BTU - 1,500 Square Feet
RESOURCES
VIDEO
PRODUCT SPECIFICATIONS
Corrosion Resistance | Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion |
Inverter | Variable-speed DC inverter compressor technology cuts operating costs |
Refrigerant | R-410A environmentally friendly refrigerant |
Warranty | Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty |
Line sizes | Line sizes 1/4”, 1/2” & 3/8”, 5/8” |
SEER | 22 |
SEER2 | 22.7 |
EER | 12.5 |
EER2 | 12.6 |
COP 47 | 3.74 |
HSPF | hspf4/hspf5 : 11.5/9 |
HSPF2 | hspf2-4/hspf2-5 : 9.8/7.2 |
CFM | 465.29/361.76/304.12 |
TONNAGE | 1.5 |
COOLING CAPACITY | 18000 BTU |
HEATING CAPACITY | 18000 BTU |
VOLTAGE | 208-230 V |
PHASE | 1 |
CYCLE | 60 Hz |
MAX FUSE BREAKER | 30 A |
MIN CIRCUIT AMPACITY | 18 A |
COLOR | White |
COLOR FAMILY | White |
RATED LOAD | 0.25 A |
MAX COVERAGE AREA | Up to 750 sqft |
ZONE CAPACITY | 1 |
REFRIGERANT TYPE | R-410A |
REFRIGERANT VOLUME | 56.44 oz |
DECIBEL RATING | 44.5/37/31 |
DECIBEL RATING LOW | 31 dBA |
DECIBEL RATING HIGH | 44.5 dBA |
AIR FLOW DIRECTION | 4-W |
OSCILLATION | Yes |
INVERTER | Yes |
MIN AMBIENT COOL | -13F - 122F |
MIN AMBIENT HEAT | -13F - 75F |
LINE SET LENGTH | 25ft |
MAX LINESET LENGTH | 75 ft |
LIQUID LINE SIZE | 1/4 in |
SUCTION LINE SIZE | 1/2 in |
COMPRESSOR MOTOR TYPE | Rotary |
CONDENSER FAN MOTOR RPM | 810/720 |
BLOWER MOTOR RPM | 1120/950/700 |
AUXILIARY HEATER INCLUDED | No |
AUXILIARY HEATER AVAILABLE | No |
FAN ONLY OPTION | Yes |
QUIET MODE | Yes |
AUTO COOL | Yes |
WIFI COMPATIBILITY | Yes |
APP COMPATIBILITY | Yes |
WORKS WITH IOS | Yes |
WORKS WITH ANDROID | Yes |
REMOTE CONTROL INCLUDED | Yes |
UL LISTED | Yes |
ENERGY STAR CERTIFIED | Yes |
AHRI CERTIFIED | Yes |
REGISTERED WARRANTY | Limited Lifetime Compressor |
BASE WARRANTY | 5-year Parts/7-year Compressor |
BASE PARTS WARRANTY | 5-year Parts |
REGISTERED COMPRESSOR WARRANTY | Limited Lifetime Compressor |
BASE COMPRESSOR WARRANTY | 7-year Compressor |
HAS BATTERIES | Yes |
CONTAINS ELECTRONICS | Yes |
CONTAINS CHEMICALS | Yes |
CONTAINS AEROSOL | Yes |
CONTAINS COMPRESSED GAS | Yes |
PROPOSITION 65 WARNING | Yes |
RESTRICTED STATES | GU;PR;VI |
CONDENSER DEPTH | 13.46 in |
CONDENSER HEIGHT | 26.50 in |
CONDENSER WIDTH | 35.04 in |
CONDENSER WEIGHT | 94.36 lbs |
AIR HANDLER DEPTH | 8.90 in |
AIR HANDLER HEIGHT | 13.19 in |
AIR HANDLER WIDTH | 42.52 in |
AIR HANDLER WEIGHT | 34.61 lbs |
