MRCOOL

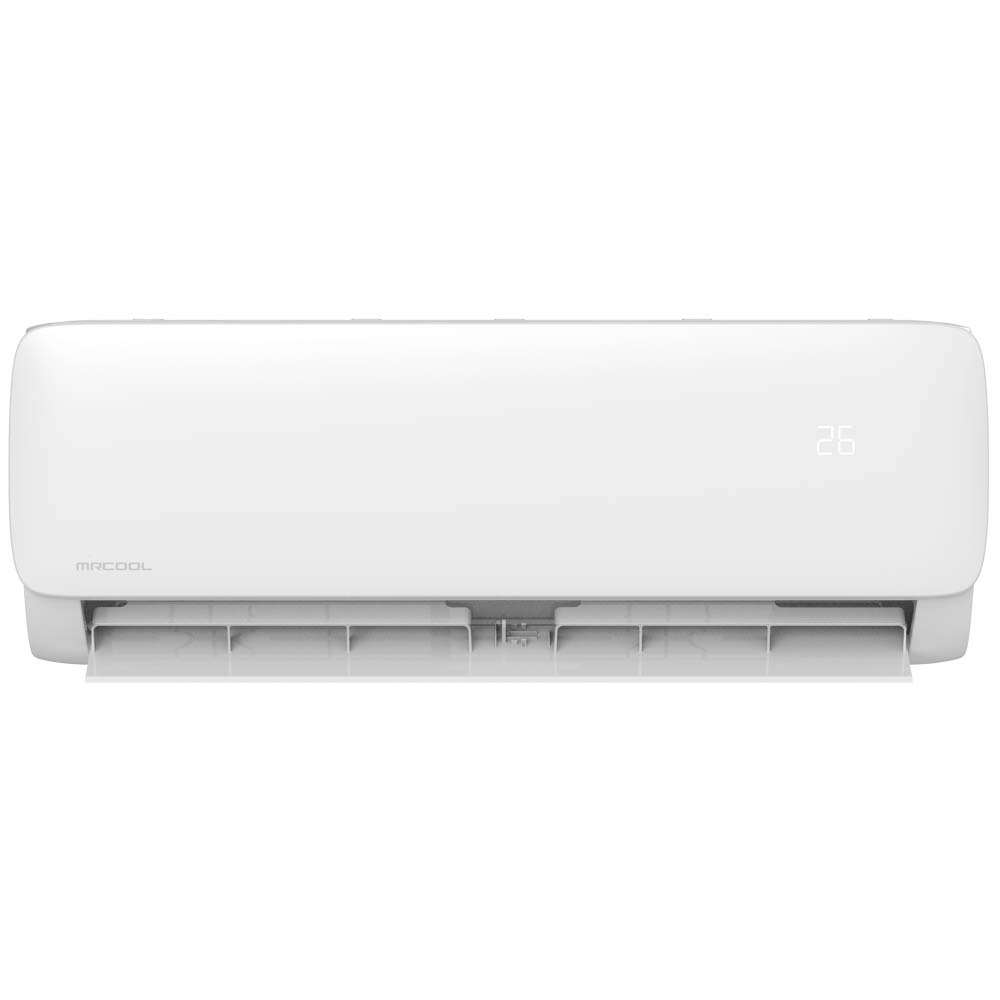

MRCOOL DIY Easy Pro 12k BTU Ductless Mini-Split Heat Pump System
MRCOOL DIY Easy Pro 12k BTU Ductless Mini-Split Heat Pump System
SKU:EZPRO-12-HP-11516
In stock
Couldn't load pickup availability
Share
OVERVIEW
This DIY easy-to-install MRCOOL® Easy Pro® 12k BTU Ductless Mini-Split Heat Pump System can heat or cool a space of up to 500 square feet with a 18 SEER rating. This energy-efficient, feature-packed HVAC system can be easily installed and easily maintained while providing the ultimate in comfort.
It includes a 16 foot pre-charged line set with Fast Connection® fittings. This system has many features such as the Follow Me® feature that keeps you comfortable no matter where you are in the room, along with convenient operational modes such as Sleep mode, Auto mode, or Timer mode.
Maintaining the system is easy as the air filters only need to be rinsed, dried, and replaced, while the indoor and outdoor units only need to be cleaned with a damp or dry cloth.
You can control this system with the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant.
Enjoy protected comfort thanks to the 1-year compressor warranty and 2-year parts warranty.
Key features:
-
Save on contractor costs with easy DIY installation: Installation Video
- Up to 18 SEER efficiency.
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion.
- Energy Efficient DC Inverter.
- Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year.
- Includes features such as timer mode, refrigerant leakage detection, and more.
- Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
- Quiet Running.
Available sizes of MRCOOL DIY Easy Pro Ductless Mini-Split Heat Pump System
-
9,000 BTU - 350 Square Feet
-
12,000 BTU - 500 Square Feet
-
18,000 BTU - 750 Square Feet
- 24,000 BTU - 1,000 Square Feet
RESOURCES
PRODUCT SPECIFICATIONS
|
SEER |
18 |
|
SEER2 |
18.9 |
|
EER |
9 |
|
EER2 |
9 |
|
COP 47 |
2.95 |
|
HSPF |
hspf4/hspf5 : 11.1/9.5 |
|
HSPF2 |
hspf2-4/hspf2-5 : 9/18.9 |
|
CFM |
300.00/241.18/176.47 |
|
COOLING CAPACITY |
12000 BTU |
|
HEATING CAPACITY |
12000 BTU |
|
VOLTAGE |
115 V |
|
PHASE |
1 |
|
CYCLE |
60 Hz |
|
MAX FUSE BREAKER |
30 A |
|
MIN CIRCUIT AMPACITY |
20 A |
|
RATED LOAD |
13.9 A |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
32.10 oz |
|
DECIBEL RATING |
35.5 dBA |
|
DECIBEL RATING LOW |
27 dBA |
|
DECIBEL RATING HIGH |
42 dBA |
|
MIN AMBIENT COOL |
5F - 122F |
|
MIN AMBIENT HEAT |
5F - 75.2F |
|
MAX LINESET LENGTH |
82ft |
|
LIQUID LINE SIZE |
1/4in |
|
SUCTION LINE SIZE |
1/2in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
850/500 |
|
BLOWER MOTOR SPEEDS |
3 |
|
BLOWER MOTOR RPM |
1200/1040/960 |
|
FILTER TYPE |
Washable |
|
FAN ONLY OPTION |
Yes |
|
SLEEP MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
2-year Parts/1-year Compressor |
|
REGISTERED PARTS WARRANTY |
2 years |
|
REGISTERED COMPRESSOR WARRANTY |
1 year |
|
PROPOSITION 65 WARNING |
Yes |
|
CONDENSER DEPTH |
10.63 in |
|
CONDENSER HEIGHT |
19.49 in |
|
CONDENSER WIDTH |
28.35 in |
|
CONDENSER WEIGHT |
55.11 lbs |
|
AIR HANDLER DEPTH |
7.87 in |
|
AIR HANDLER HEIGHT |
11.61 in |
|
AIR HANDLER WIDTH |
31.57 in |
|
AIR HANDLER WEIGHT |
24.03 lbs |
