MRCOOL DIY 4th Gen 24k BTU Ductless Mini-Split Air Handler with Enhanced WiFi

OVERVIEW

As part of a MRCOOL DIY system, the MRCOOL DIY 24K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 20.5 SEER efficiency rating, it can also cover an area up to 1000 sq. ft.

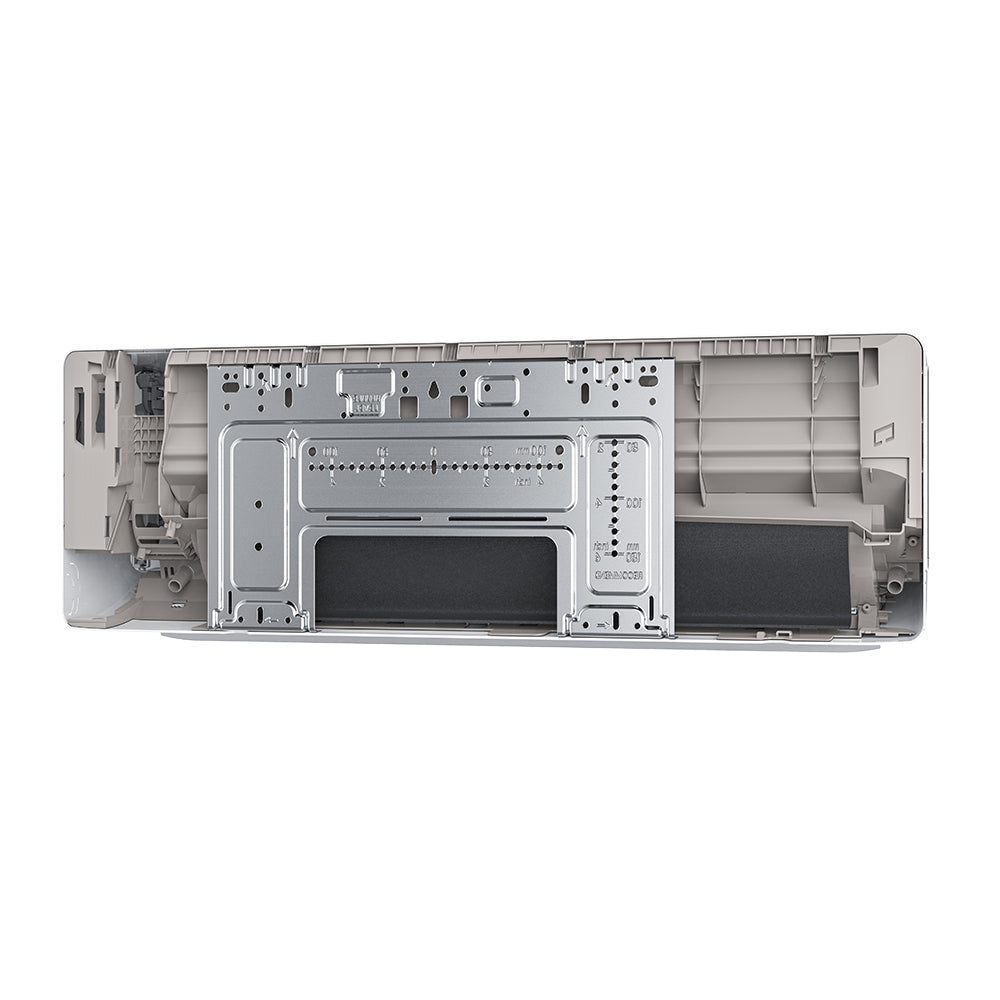

It is also incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

To take the simplicity of the installation even further, this air handler is designed to be used with MRCOOL’s patented Pre-Charged Quick Connect Line Set. The line set is equipped with quick connectors, which give a DIY installer the ability to connect the refrigerant piping with wrenches. The line set comes from the factory pre-charged with the correct amount of R-410A refrigerant, so no vacuuming is necessary.

Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-24-HP-WMAH-230C25 wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective.

Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.

Key features:

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection.

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty.
• Compatible with Amazon Alexa and Google Assistant.
• IIncludes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements.

RESOURCES

Installation Manual

Brochure

PRODUCT SPECIFICATION
